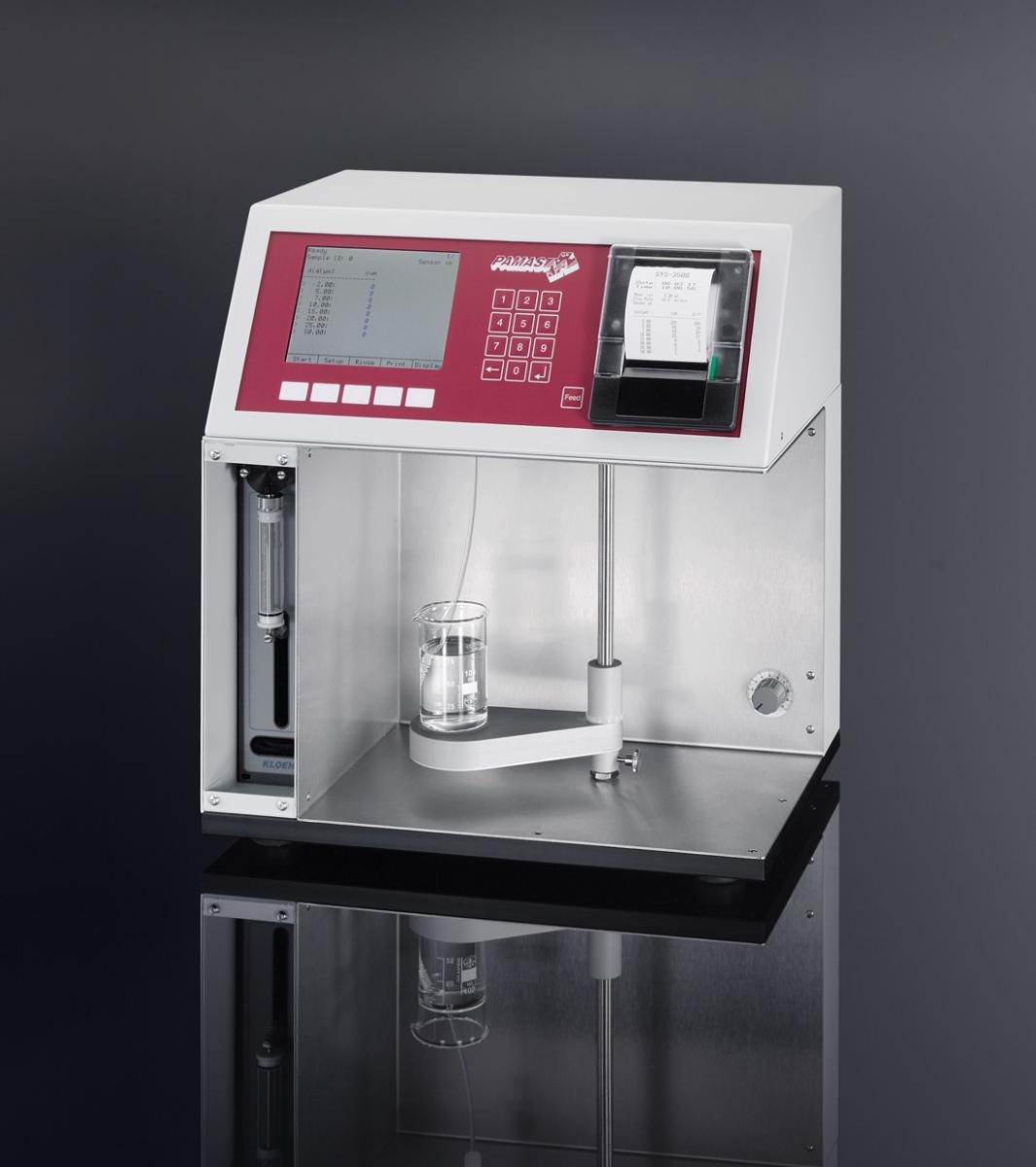

The PAMAS SVSS Liquid Particle Counting System is a laboratory counter for pharmaceutical applications (control of parenteral fluids, infusion solutions, ophthalmic & oral fluids) and other liquids of low viscosity. The instrument may be used either as a stand-alone, or software controlled. Its menu-driven navigation system is very straightforward for users, enabling their swift training.
A stepper motor-actuated precision syringe moves the sample through the laser diode sensor at the optimum flow rate in order to achieve an accurate sample volume. Using interchangeable syringes, the PAMAS SVSS can analyse sampling volumes, of different sizes, from 1 µl to 2,000 ml. For small volumes, a special ‘Small Volume Kit’ is available.
Software:
PAMAS USP Pharmaceutical Procedural Software: 21 CFR part 11 compliant software. Used for the data analysis of parenterals, infusion solutions, ophtalmic & oral fluids according to pharmaceutical standards like USP, EP, BP and JP. The measuring report includes all sample parameters and the numerical and graphical presentation as well as the assessment of the measuring results according to the selected pharmaceutical standard.
PAMAS PMA (Particle Measuring and Analysis) Software: For the operation of particle counters and for the analysis of measurement results. The measuring report includes all sample parameters and the numerical and graphical presentation of the measuring results. The report is compliant with the cleanliness standards ISO 4406, SAE AS 4059, NAS 1638, GOST 17216, GJB 420 and NAVAIR 01-1A-17.
The results are automatically stored and may be exported to Microsoft Excel for further evaluation.
Specifications:
Different application types may require different sensors; a range of choices is available for the SVSS (please see brochure). The standard sensor PAMAS HCB-LD-25/25 is equipped with a flowrate of 10 ml/min and a size range of 1 to 200 µm.
 |
8, 16 or 32 (with optional extra module) free adjustable size channels; thresholds are selectable within the measuring range of the particle sensor |
|
Backlit graphical LC-display with 320 x 240-pixel resolution shows measuring results in real time |
|
Volumetric cell design of PAMAS sensors guarantees highest accuracy and resolution: 1μm sensitivity according to ISO 4402, 1.5μm(c) sensitivity according to ISO 11171, 0.5μm sensitivity according to ANSI/NFPA/ISO. |
|
Measurement of small volumes down to 1 ml ampoule sizes (with Small Volume Kit), sample measurement sizes 1 μl up to 2,000 ml with accuracy greater than 10 μl means a wide variety of testing procedures are available |
|
Integrated 32 column thermoprinter |
|
Data transfer: 8 Bit ASCII code, RS-232C port |
|
Power supply: 100 V, 120 V, 230 V, 240 V; 50-60 Hz AC |
