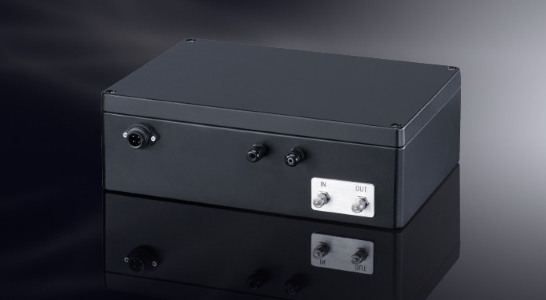

PAMAS OLS50P online particle counter is a stationary instrument for fluid condition monitoring.
All types of light extinction sensors of the PAMAS HCB-LD series can be integrated in the PAMAS OLS50P. If required, the sensor can be built of resistant material, so that it can be used for the analysis of all types of liquids and critical fluids, from water down to strong acid.
The PAMAS OLS50P is equipped with a wear resistant ceramic piston pump. The pump provides a constant flow rate of 10 or 25 ml/min at a pressure range from 0 – 6 bar.
Technical Data
Particle counter:
Particle measurement in eight size channels
Pressure range: 0 – 6 bar
Data transmission:
- RS 485 interface
- Analogue 4-20 mA interface. Parallel data transmission for four size channels or serial data transmission for all eight size channels.
Volumetric sensor:
PAMAS HCB-LD-50/50
Calibration range:
- 4-70 µm(c) according to ISO 11171
- 1-200 µm according to ISO 21501
Maximum particle concentration: 24,000 p/ml at a coincidence rate of 7.8%.
PAMAS SLS-25/25
Calibration range:
- 1.5-25 µm(c) according to ISO 11171
- 0.5-20 µm according to ISO 21501
Maximum particle concentration: 13,000 p/ml at a coincidence rate of 7.8%
Software:
PAMAS PCT (PAMAS Component Test) Software: Enables online cleanliness tests of manufactured components in machinery engineering applications (test rigs).
PAMAS POV (PAMAS Online Visualisation) Software: Software programme for online fluid condition monitoring and visualisation of measuring results. PAMAS POV can be used to start and stop measuring of a compatible particle counter.
Size:
330 x 230 x 120 mm
Case protection: IP 64
