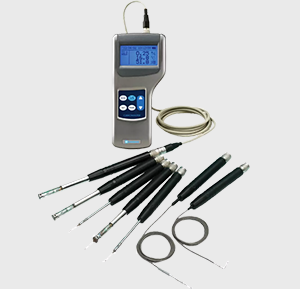

Kanomax 6501 Climomaster Anemometer

Multi-function hot-wire anemometer with detachable compatible probes.

It offers research-grade accuracy at an affordable, industry-competitive price. Kanomax ensures the high accuracy and reliability of this anemometer with over 60 years’ experience, a special platinum-coated sensor that improves stability and durability, and a production facility that uses multiple types of wind tunnels in its development and product testing programmes. A high degree of accuracy is essential for applications such as R&D product development, laminar flow measurements and cleanroom certification.

Typical applications include:

	R&D Product development.
	HVAC Ventilation Testing and Balancing.
	Laboratory Control.
	Fume Hood Performance Testing.
	IAQ Investigation.
	Industrial Flow Testing.
	Critical Environment Certification.
	HEPA Filter Performance Testing.
	Turbulent Air Testing.
	Manufacturing Process Control.

Features and benefits:

	The most accurate handheld hot-wire anemometer in its class with a 2% full-scale air velocity accuracy, providing research-grade quality at a contractor-friendly price.
	A wide range of interchangeable probe choices for challenging applications, including a low air velocity, omni-directional probe or one probe which can simultaneously measure air velocity, air temperature, relative humidity and air flow rate (with an automatic flow rate calculation function).
	The Probe Compatibility feature allows you to have spare probes for the same main unit; also, to share multiple probes between multiple main units.
	A generous datalogging capacity (up to) 20000 records) and the USB interface make it easy to upload to your PC or laptop.
	Optional Measuring Software (Windows 7 compatible) displays data as real-time measurements in table, graphic and spreadsheet formats for field analysis.
	Sleek, ergonomical design with an anti-slip grip and highly visible backlit display.
	Now tracks its own calibration cycle. It will now remind you when it is due for calibration.
	An optional hands-free carrying case is available.
	An extended 2-year warranty.

First check your required air velocity range as well as whether the probe must measure in a particular direction (uni-directional) or from any direction (omni-directional). Also base your choice on whether you require temperature and/or relative humidity measurement.

PLEASE NOTE: New probes will not be compatible with older (pre-2012) models of Climomaster unless the main unit is returned to Kanomax for a firmware upgrade. Please click HERE for more details on the Kanomax website.

Please see the tables below to help with the choice of your probe(s):

Probe Selection Guide

Probe	Measuring Range (m/s)	Probe Type	Directivity	Velocity	Temperature	Relative Humidity
6531-2G	0.10 – 30.0	Rod	Mono
6541-2G	0.10 – 30.0	Rod	Mono
6561-2G	0.10 – 50.0	Rod	Mono
6542-2G	0.10 – 30.0	Needle	Omni
6533-2G	0.05 – 5.00	Spherical	Omni
6543-2G	0.05 – 5.00	Spherical	Omni
6551-2G	0.10 – 30.0	Miniature	Omni
6552-2G	0.10 – 30.0	Miniature	Omni
